Fiberglass Tape

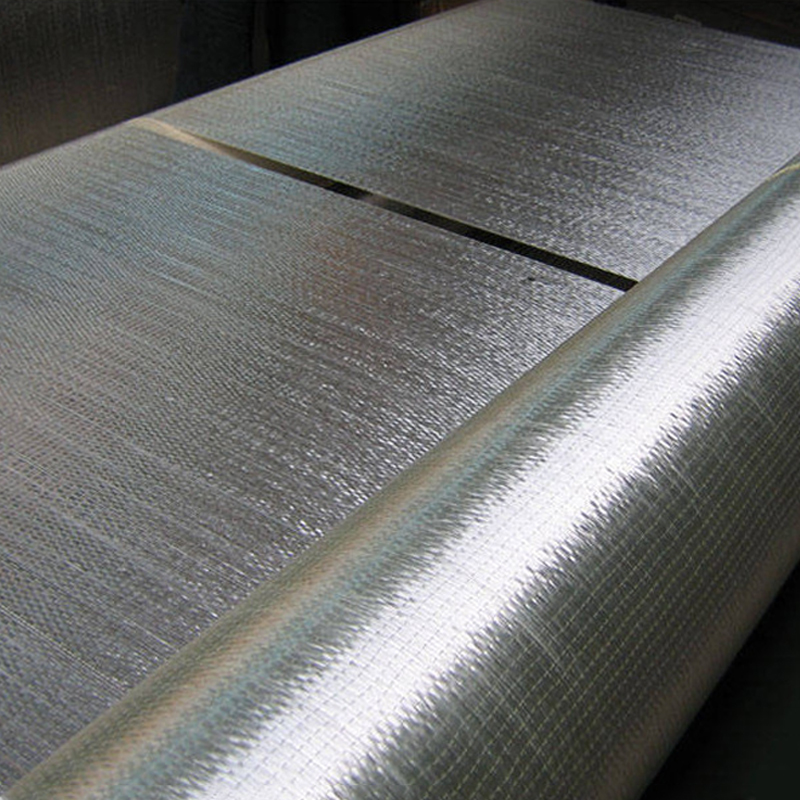

Fiberglass Unidirectional Fabric

description

Unitex Fiberglass Unidirectional (UD) Fabric is a one direction weave especially suitable for various kinds of building structural reinforcement such as beam, column, ventilator, pipe, wall concrete, masonry structure, wood structure, etc.



Unitex Fiberglass Unidirectional Fabric is very small effect on decoration, long storage life, long operation period, no wet operation, no large construction equipment, no on-site fixed facilities. Does not need regular maintenance and protection of internal concrete structure, can achieve the dual purpose of repair concrete, at the same time with high temperature resistance, abrasion resistance and good seismic performance, thixotropy and solubility, conform to the requirements of environmental protection, and so on.



Typical Fabric List:

Code Fiber Weave Weight
(g/㎡)
Thickness
(mm)
Width
(mm)
Warp Weft
UT-FG-U200 E-Glass PET Unidirectional 200 0.2 100-1500
UT-FG-U300 E-Glass PET Unidirectional 300 0.3 100-1500
UT-FG-U500 E-Glass PET Unidirectional 500 0.5 100-1500
UT-FG-UX200 PET E-Glass 90° Unidirectional 200 0.2 100-1500
UT-FG-UX300 PET E-Glass 90° Unidirectional 300 0.3 100-1500
UT-FG-UX500 PET E-Glass 90° Unidirectional 500 0.5 100-1500



More details and custom size please contact our sales at sales@unitexcomposite.com.
