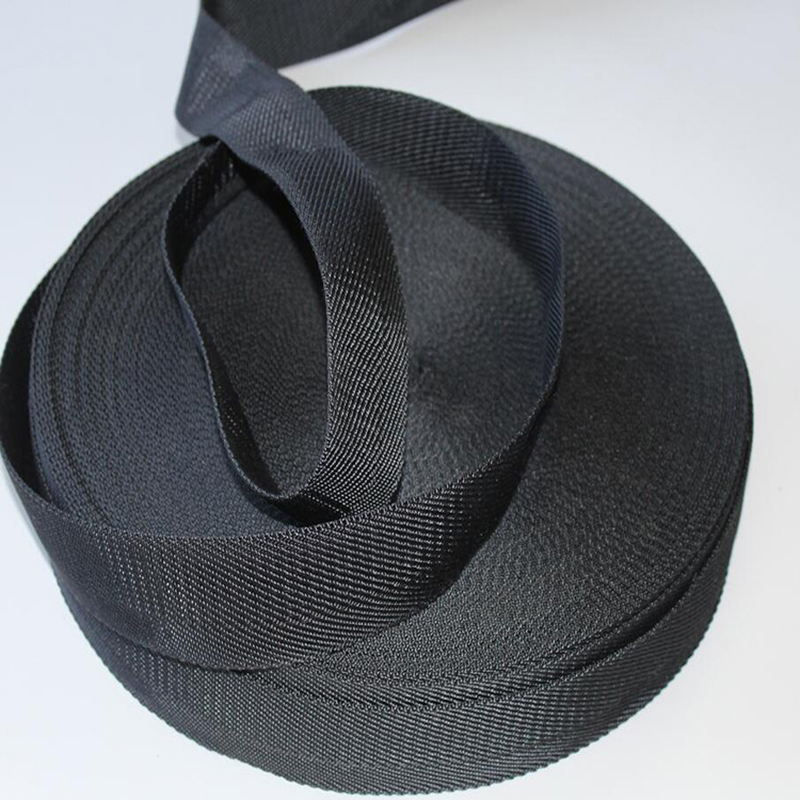

Aramid Fiber Tape
Aramid fiber is firstly developed in 1960s by DuPont company in USA. The trade name of DuPont Para-Aramid is Kevlar, and also DuPont have developed Meta-Aramid named Nomex.in 1965. The full chemical name of Aramid is poly- p- phenylene terephthamide, It is an advanced high strength, high modulus synthetic fiber. Weight is only 1/5 of the steel, he strength is 5 to 6 times the strength of steel. The modulus is 2 to 3 times that of steel. Toughness is twice to steel. It has soft feel, good spinnability, good insulation performance, long term working life and flame resistance.
Aramid fiber tape is a high strength, high temperature, fire resistant, high stability woven tape. It is widely use in Respirator suspenders, Mandible of helmet, Mechanical equipment, Industrial production, Aerospace, Load lifting, Firefighting equipment;
1. Low gravity.
2. Electrical insulator.
3. Low thermal expansion coefficient.
4. High tensile strength and high tensile strength.
5. Low elongation, high modulus and high fracture strength.
6. High chemical resistance, high stability, creep resistance and fatigue resistance.
7. High temperature resistance, flame resistance and non-melting will only be carbonized.
Code |
KVL1000 |
NMX1000 |
Fiber |
Para-Aramid |
Meta-Aramid |
Weave |
Plain, Twill, Herringbone, Satin |
|
Thickness |
0.3mm to 5mm |
|
|
inch to 3/16inch |
|
Width |
10mm to 150mm |
|
|
1/8inch to 6inch |
|
Color |
Yellow |
|
Working Temperature |
-50℃ to 350℃ |
|
|
-58℉ to 662℉ |
More details and custom size please contact our sales at sales@unitexcomposite.com.
