Carbon Fiber Fabric

Carbon Fiber UD Fabric

Previous:Carbon Fiber Multiaxial Fabric Next:No more
description

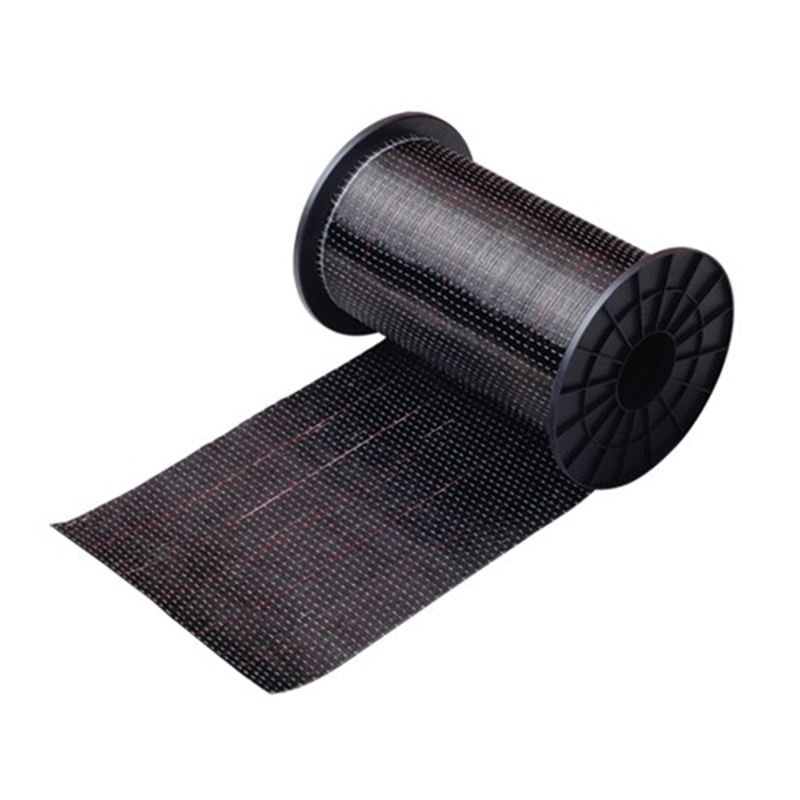

UNITEX® Carbon Fiber UD Fabric is a high-performance reinforcement material specifically designed for civil engineering and structural retrofitting. It is exceptionally suited for strengthening concrete, masonry, and timber structures without adding significant weight or thickness.



Core Advantages:

Seismic Retrofitting: Enhances the load-bearing capacity and seismic performance of beams, columns, and walls in commercial and residential buildings.

Maintenance-Free: Offers excellent corrosion and abrasion resistance, significantly extending the service life of infrastructure like bridges and highway overpasses.

Easy Installation: Can be applied on-site without heavy machinery, making it ideal for urban infrastructure repair.



Typical Fabric List:

Code Fiber Weave Weight
(g/㎡)		 Thickness
(mm)		 Width
(mm)
Warp Weft
UT-3K-U200 3K PET Unidirectional 200 0.2 100-1500
UT-12K-U300 12K PET Unidirectional 300 0.3 100-1500
UT-24K-U500 24K PET Unidirectional 500 0.5 100-1500
UT-3K-UX200 PET 3K 90° Unidirectional 200 0.2 100-1500
UT-12K-UX300 PET 12K 90° Unidirectional 300 0.3 100-1500
UT-24K-UX500 PET 24K 90° Unidirectional 500 0.5 100-1500



More details and custom size please contact our sales at sales@unitexcomposite.com.
