Ceramic Fiber Blanket
description

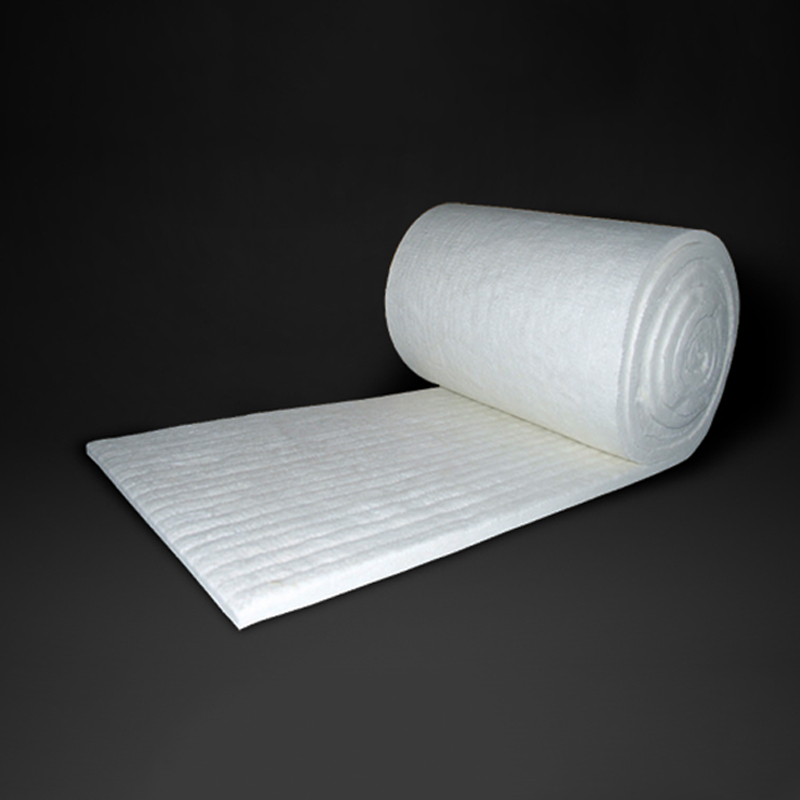

Ceramic Fiber Blanket
UWool® Ceramic Fiber Blanket is made of special ceramic long-fiber that is produced by the melting of very pure raw materials in double surface melding process without binders and with good stability in a large range of temperature. The process of double surface needing increase interweaving and tensile strength. UWool® ceramic fiber blanket presents unparalleled refractories and thermal insulation due to its long-spun fiber needling technique. These blankets offer superior insulating performance, flexibility and resilience. UWool® ceramic fiber blanket products are unaffected by most chemicals (except hydrofluoric & phosphoric acids and concentrated alkali). Thermal and physical properties are retained after drying following wetting by oil, steam or water. UWool® ceramic fiber blankets are completely inorganic, so there are no fumes when heating for the first time. UWool® ceramic fiber blankets is widely used for refractory and high temperature application such as Industrial furnace wall lining, Back lining material, Furnace masonry expansion joints/door/roof heat insulation seal, High temperature pipe insulation material, Module/folded module processing material, Fireproof coating, Steel industry Heat treating and annealing furnaces, Furnace door linings and seals, Soaking pit covers and seals, Furnace hot face repairs, Reheat furnaces, Ladle covers, Power generation, Boiler Insulation, Boiler Doors, Reusable Turbine Covers, Pipe Covering, Insulation of Commercial Dryers and Covers, Veneer Over, Existing Refractory, Stress Relieving Furnaces, Glass Furnace Crown Insulation, Fire Protection.
1. High tensile strength and Low shrinkage
2. Good resiliency with low heat storage
3. Low thermal conductivity
4. Thermal shock resistance
5. Good sound absorption
6. Low heat capacity;
7. Excellent insulation properties;
Code | CR3000PT | CR3000ST | CR3000HP | CR3000HA | CR3000HZ | ||
Product Grade | PT | ST | HP | HA | HZ | ||
Categorize the temperature(℃) | 1100 | 1260 | 1260 | 1360 | 1430 | ||
The work temperature(℃) | < 1000 | 1050 | 1100 | 1200 | 1350 | ||
The color | white | pure | pure | pure | pure | ||
Physical volume density(kg/m3) | 96 | 64 | 96 | 128 | 128 | ||
128 | 96 | 128 | 160 | 160 | |||
128 | |||||||
160 | |||||||
Permanent line constringency(%) ( heat preservation 24 hours, physical volume density 128/ m3) |
-4 (1000℃) |
-3 (1000℃) |
-3 (1100℃) |
-3 (1250℃) |
-3 (1350℃) |
||
Each temperature descend transmit heat the coefficient( w/ m.k)( physical volume density 128 kgs/ m3) |
0.09(400℃) 0.16(800℃) |
0.09(400℃) 0.16(800℃) |
0.09(400℃) 0.16(800℃) 0.20(1000℃) |
0.12(600℃) 0.20(1000℃) |
0.16(800℃) 0.20(1000℃) |
||
The anti- pulls the strength( MPa) ( Physical volume density 128 kgs/ m3) |
0.04 | 0.04 | 0.04 | 0.04 | 0.04 | ||
Chemical Composition | AL2O3 | 40-44 | 45-46 | 47-49 | 52-55 | 39-40 | |
AL2O3 SIO2 | 95-96 | 96-97 | 98-99 | 99 | - | ||
AL2O3 SIO2 ZrO2 | - | - | - | - | 99 | ||
ZrO2 | - | - | - | - | 15-17 | ||
Fe2O3 | <1.2 | <1.0 | 0.2 | 0.2 | 0.2 | ||
Na2O K2O | ≤0.5 | ≤0.5 | 0.2 | 0.2 | 0.2 | ||
SIZE(mm) | In common use specification:1440-7200×610×10-50;Other specifications manufacture according to the customer request. |
More details and custom size please contact our sales at sales@unitexcomposite.com.
