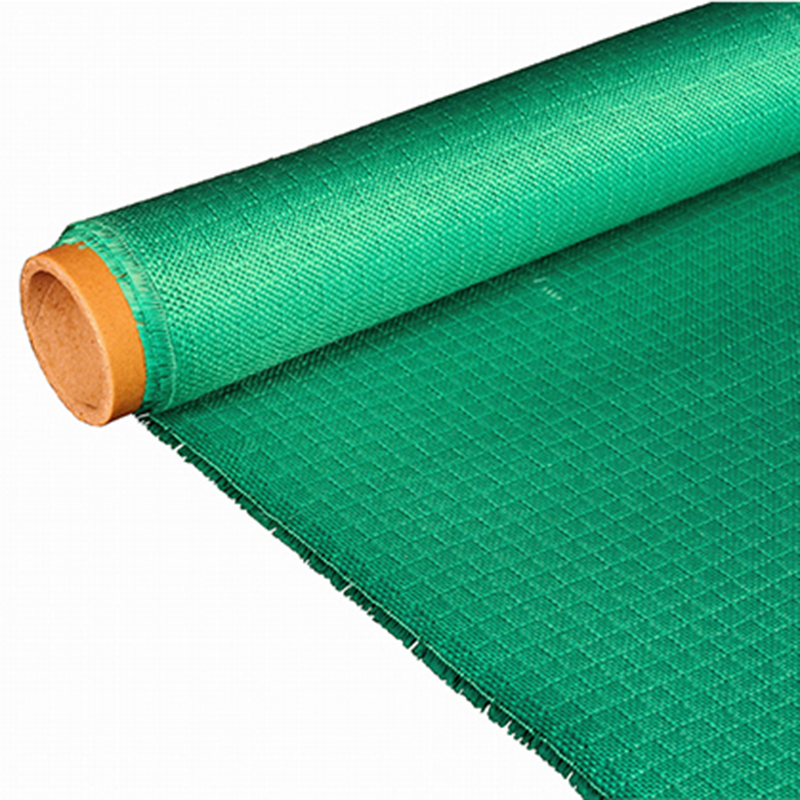

Acrylic Coated Fiberglass Fabric
Unitex Acrylic Coated Fiberglass Fabric (Also called Weave-lock Treatment) is produced by Filament Fiberglass Fabric or Texturized Fiberglass Fabric with Acrylic resin coating. It can be any color as customer requested and choose a basic fabric to do coating. The fiberglass fabric is normally dusted and easy to disperse when something sharp plug in, even human finger. And after cutting the fiberglass fabric without coating will be raw edge with many small fibers spread. With the advantage of acrylic coating, these issues will be fixed. And Acrylic coating also brings higher tensile strength, tear strength, tensile modulus, higher surface anti-abrasion performance. Also make fabric fire proof, water proof, good chemical resistant, smoke impassability, protection from spark and easy to cut and sew. It is widely used for All types of thermal insulation and heat protection. Pipe connecting in many industries, Non-metallic compensator and expansion joints. Furnace curtains, welding curtains, welding blankets and fire blankets. Protective air cargo covers; noise control barriers. Gasket and packaging for power plant, printing, chemical and rubber industries.
1.Anti-corrosion, anti-abrasion.
2.Good heat resistance, electric resistance
3.Working temperature up to 550°C
4.Low thermal conductivity coefficient
5.Colors available for choice
Typical Fabric List:
Code | Yarn Type | Weave | Weight | Thickness (mm) |
Width (mm) |
|
(g/㎡) | OZ | |||||
AC7628 | Filament Yarn | Plain | 220 | 6.5 | 0.2 | 1000-1500 |
AC3732 | Filament Yarn | Twill | 450 | 13.2 | 0.45 | 1000-1500 |
AC666 | Filament Yarn | Twill | 700 | 20.5 | 0.65 | 1000-1500 |
ACFW600 | Filament Yarn | Checkerboard | 650 | 19 | 0.6 | 1000-1500 |
ACFW800 | Filament Yarn | Checkerboard | 850 | 25 | 0.8 | 1000-1500 |
AC3784 | Filament Yarn | Satin | 880 | 26 | 0.8 | 1000-1500 |
AC84215 | Texturized Yarn | Plain | 320 | 9.5 | 0.38 | 1000-1500 |
AC2025 | Texturized Yarn | Plain | 650 | 19 | 0.8 | 1000-1500 |
ACW24 | Texturized Yarn | Plain | 850 | 25 | 1 | 1000-1500 |
ACW30 | Texturized Yarn | Plain | 1060 | 31 | 1.5 | 1000-1500 |
ACW52 | Texturized Yarn | Plain | 1890 | 55.5 | 2 | 1000-1500 |
More details and custom size please contact our sales at sales@unitexcomposite.com.
